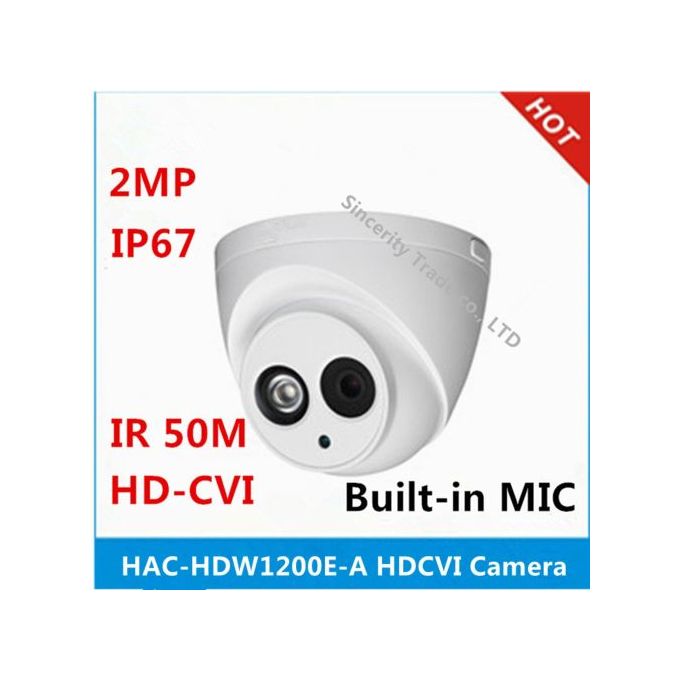

Note: this camera model is DH brand HDCVI camera with BNC interface! Only support DH brand HCVR and XVR
Features: High-performance megapixels CMOS image sensor, support 1080P HD output;Transmission technology using proprietary, real-time lossless coaxial class support 75-3 transmission distance up to 300 meters;Support ICR IR cut filter automatic switching, automatic color to black function, day and night surveillance;Support intelligent infrared function effectively prevent the infrared close overexposed;It supports a maximum infrared radiation from 50 meters;Support auto exposure, auto white balance for a variety of scenarios to monitor;Image color reproduction and high image fidelity;Products through -30 ~ + 60 high temperature thermal cycling test, easy to deal with harsh environment;The use of advanced three-axis rotation module designed to support multi-angle adjustment monitoring area;Support DC12V ± 25% wide voltage power supply;Protection grade IP67;Product packaging after three-dimensional vibration (3G) test to ensure transport safety;HDCCTV 2.0AT in accordance with international standards, universal;Follow the national standard GA / T 1211 high-definition video standard;
   Parameter classification Parameter / model DH-HAC-HDW1200E-Avideo camera Sensor type 1/2.7 "2 Pixels CMOS Megasignalling system PALSensor effective pixels 1920 (H) * 1080 (V)Minimum illumination 0.01Lux (F1.2, ON AGC), 0 with IR LuxElectronic shutter PAL:1/50s~1/100000s  Maximum infrared distance 30mDay and night conversion Automatic switching of ICR infrared filterwhite balance supportBacklight compensation supportnoise reduction 2D noise reductionInfrared control scheme Photosensitive controlLens parameter focal length 3.6mm/6mm C-mount or CS-mountLens interface M12Video parameters Video output 1 roadVideo standard Follow the HDCVI standardVideo frame rate 108025fps * PAL:1920;  function OSD menu supportExposure setting Normal / front / back lightConventional parameter power supply 12V DC + 20%power waste MAX 3.6Wworking temperature -30 C ~ +60Working humidity Humidity is less than 95% (no condensation)Protection level I P67Size (mm) Phi 110*95weight 300gInstallation method Wall mounted, top mounted   Angle of view camera lens Diagonal * vertical (D*H*V)  3.6mm 107.7 degree *80.6 degree *58.5  6mm 67.1 degree *57.55 * 31.43
